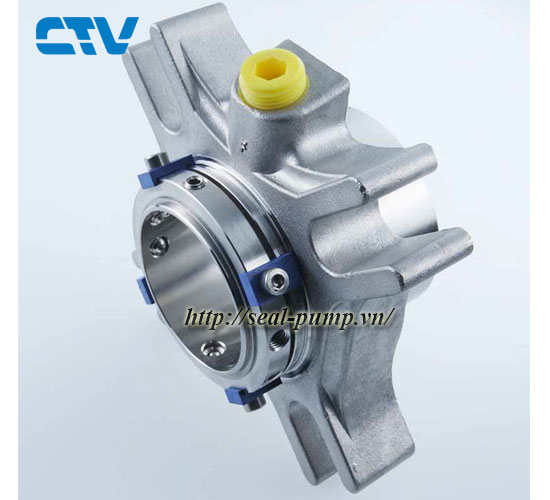

Phớt cơ khí Burgmann CTV Cartex Single seal

Tính năng của Phớt cơ khí Burgmann CTV Cartex Single seal

+ Single seal

+ Cartridge

+ Balanced

+ Independent of direction of rotation

+ Single seals without connections (-SNO), with flush (-SN)and with quench combined with lip seal (-QN) or throttle ring (-TN)

+ Additional variants available for ANSI pumps (e. g.-ABPN) and eccentric screw pumps (-Vario)

+ Ideal seal for standardizations

+ Universal applicable for packings conversions, retrofits or original equipment

+ No dimensional modification of the seal chamber (centrifugal pumps) necessary, small radial installation height

+ No damage of the shaft by dynamically loaded O-Ring

+ Extended service life

+ Installation faults are avoided, cost-effective

+ No damage caused by dirt entered during assembly

+ Straightforward and easy installation due to pre-assembled unit (reduced down-times)

+ Individual adaptation to pump design possible

+ Customer specific versions available

Thông số kĩ thuật của Phớt cơ khí Burgmann CTV Cartex Single seal

Cartex-SN, -SNO, -QN, -TN, -Vario

Shaft diameter:

d1 = 25 … 100 mm (1.000" … 4.000") Other sizes on request

Temperature: t = –40 °C … +220 °C (–40 °F … +428 °F) (Check O-Ring resistance)

Sliding face material combination BQ1

Pressure: p1 = 25 bar (363 PSI)

Sliding velocity: vg = 16 m/s (52 ft/s)

Sliding face material combination Q1Q1 or U2Q1

Pressure: p1 = 12 bar (174 PSI)

Sliding velocity: vg = 10 m/s (33 ft/s)

Axial movement: ±1.0 mm, d1 ≥75 ±1.5 mm

Vật liệu cấu tạo của Phớt cơ khí Burgmann CTV Cartex Single seal

Seal face: Silicon carbide (Q1), Carbon graphite resin impregnated (B), Tungsten carbide (U2)

Seat: Silicon carbide (Q1)

Secondary seals: FKM (V), EPDM (E), FFKM (K), Perflourocarbon rubber/PTFE (U1)

Springs: Hastelloy® C-4 (M)

Metal parts: CrNiMo steel (G), CrNiMo cast steel (G)

Ứng dụng của Phớt cơ khí Burgmann CTV Cartex Single seal

+ Process industry

+ Petrochemical industry

+ Chemical industry

+ Pharmaceutical industry

+ Power plant technology

+ Pulp and paper industry

+ Water and waste water technology

+ Mining industry

+ Food and beverage industry

+ Sugar industry

+ Universally applicable

+ Centrifugal pumps

+ Eccentric screw pumps

+ Process pumps

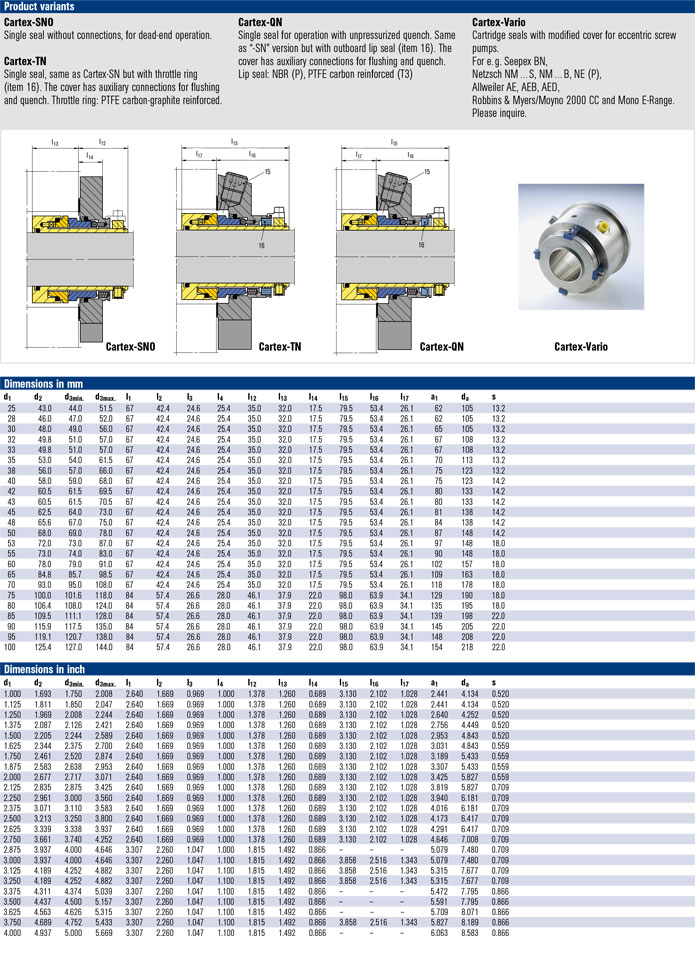

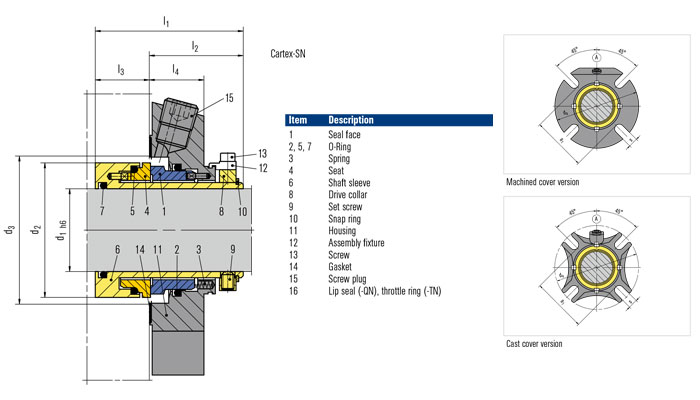

Bảng thông số các chi tiết kĩ thuật của Phớt cơ khí Burgmann CTV Cartex Single seal
